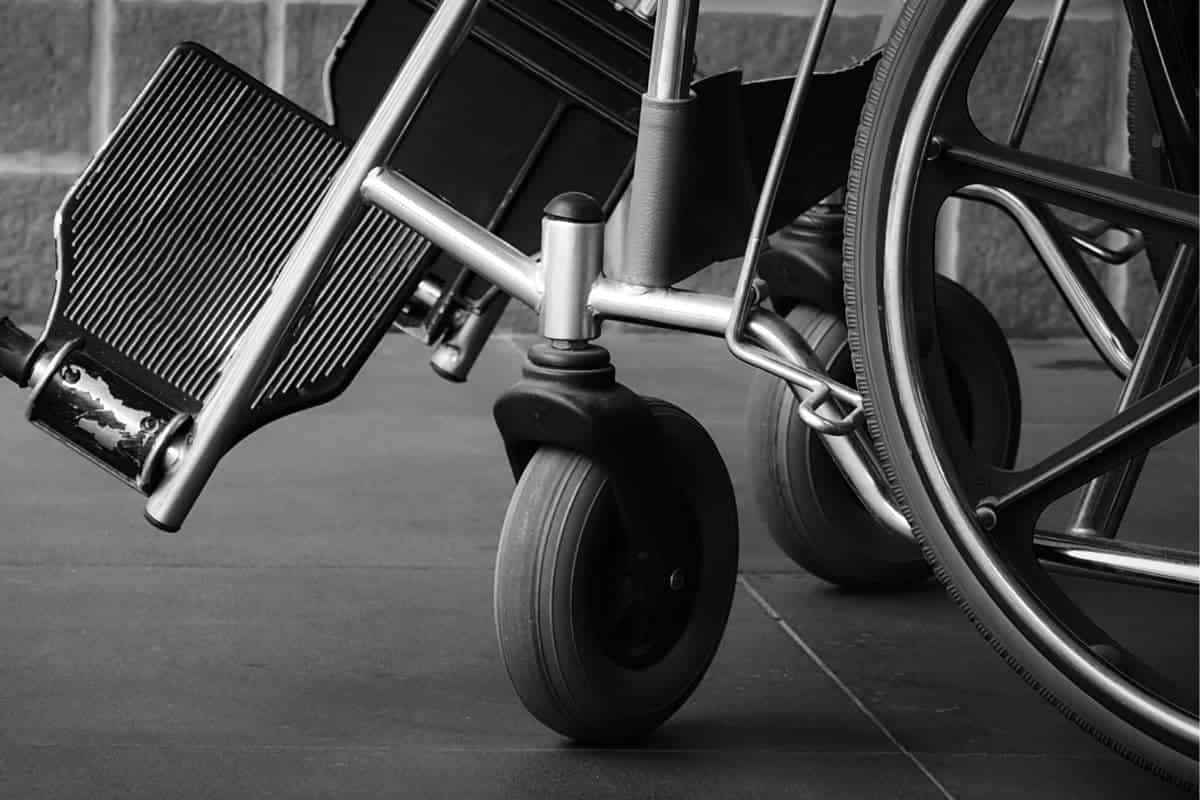

Why Do Wheelchairs Have Small Front Wheels?

You might've noticed that most wheelchairs have small front wheels on them. These small wheels are casters and serve a specific purpose in the chair's design.

Wheelchairs have small front wheels to help with steering and maneuverability. They can turn in any direction, which guides the larger wheels. This feature makes it easier for the wheelchair user to steer themselves and offers anyone helping to push more control when turning.

I will cover everything you need to know about casters on wheelchairs in this article. If you're ready to learn more, make sure to keep reading!

What Are the Small Front Wheels on Wheelchairs For?

Casters are the smaller front wheels you can find on wheelchairs. The additional wheels are often found on chairs requiring the assistance of a caregiver since they offer them more control over the steering from behind.

These chairs are often called attendant-propelled wheelchairs, although you can find casters on more than just those types.

The Purpose of Casters on Wheelchairs

There are a few different purposes that the casters can serve on wheelchairs. I'll break these down into more detail for you.

Added ease of movement: The primary reason these casters would be in a wheelchair is to enhance ease of movement. With them in place, it becomes easier to make turns, especially for attendants helping the wheelchair user. The smaller wheels turn before the larger ones, which helps guide them. This feature is especially useful on tighter turns and makes it easier to move in the chair overall.

Stabilize the chair: While the wheels' primary purpose is to allow the chair to turn smoothly, they also help to increase stability. Adding two more wheels makes the chair's weight spread out further, making it harder to tip over. This feature is significant to the elderly, who can receive severe injuries from falls.

Choosing the Correct Wheelchair Casters

There are so many different casters available since you can find them in different sizes and materials. If you or a family member uses a wheelchair, you'll likely need to replace the caster wheels at some point, so you should learn about the differences now.

Caster Tire Types

There are three main types of caster tires:

Solid: The tires aren't hollow and consist of a durable, hard material the entire way through. This option offers easier turning but can accentuate bumps that the wheelchair travels over.

Air-filled: These tires are hollow and contain air inside of them. They're not quite as durable as solid ones, although they're better for bumpy and uneven terrain. You will need to refill them with air occasionally.

Flat-free tires: These tires contain foam and are only half-solid. You get half the benefits and downsides of solid and air tires with them, so most people view them as the middle option. However, they need to be replaced sometimes instead of refilled with air.

Consider the Caster Size

Next, the caster size can impact how the front wheels work, making this feature essential to consider. The larger the wheel's diameter, the easier it is to travel over debris and cracks on the ground. Smaller wheels have more steering and turning capabilities, making maneuvering the chair on a dime easier.

Everyone has different needs regarding their wheelchair, so you'll want to consider how it will be used the most. For assisted living facilities, larger diameters are the better option because the wheelchair user wants additional support. The smaller ones are best for those who need better-turning abilities in tight spaces.

Overall, you will want to consider the caster size. When checking the diameter of the wheels, you should also make sure you choose one that suits the user's weight, as different wheels won't have the same limits in place.

Caster Materials

Casters come in various materials, each with different characteristics:

Polyurethane: Durable and provide a smooth ride on most surfaces. Good for indoor and outdoor use.

Rubber: Softer and provide better shock absorption. Ideal for outdoor use but can be harder to roll on carpet.

Plastic/Nylon: Lightweight and affordable but less durable. Best for indoor use on smooth surfaces.

Replacing Caster Wheels

If you or a loved one uses a wheelchair, you will need to know how to replace the caster wheels because you will have to do it at some point.

Fortunately, replacing caster wheels is relatively straightforward:

1. Check the stem type: Casters attach via stems that are either grip ring (with a metal ring around the stem) or threaded. Make sure you get the right type for your wheelchair.
2. Remove the old caster: For grip ring casters, you may need to apply pressure or use a tool to release the ring. For threaded casters, simply unscrew them.
3. Install the new caster: Push or screw the new caster into place firmly.
4. Test: Make sure the new caster swivels freely and the chair moves smoothly.

If you're unsure about replacing casters yourself, most medical supply stores or wheelchair service companies can do it for you.

Maintenance Tips for Casters

Regular maintenance keeps casters working properly:

• Clean regularly: Remove hair, threads, and debris that can wrap around the caster axle.
• Check for wear: Inspect tires for cracks, flat spots, or excessive wear.
• Lubricate: Some casters benefit from occasional lubrication of the swivel mechanism.
• Tighten as needed: Ensure casters are securely attached and not wobbling.
• Replace in pairs: When one caster needs replacing, replace both front casters to maintain even performance.

Wheelchair Design Considerations

The small front wheels are part of a carefully engineered system. Here's how they work with other wheelchair features:

Rear wheel size: Manual wheelchairs typically have large rear wheels (24-26 inches) that the user pushes. The small front casters complement these by allowing tight turning radius while the large wheels provide stability and ease of propulsion.

Wheelbase width: The distance between the front casters affects stability. Wider wheelbases are more stable but harder to navigate through narrow doorways.

Fork angle: The angle at which caster forks attach to the frame affects how easily the chair turns and how stable it feels.

Specialized Caster Options

Beyond standard casters, there are specialized options for specific needs:

Frog leg suspension casters: These have a unique suspension system that absorbs shock, providing a smoother ride over rough surfaces.

Anti-tip casters: Some wheelchairs have additional small rear casters that prevent the chair from tipping backward.

Locking casters: These can be locked in place to prevent rolling, useful for transfers or when the user needs the chair to stay stationary.

Final Thoughts

The small front wheels on wheelchairs—casters—are essential components that provide maneuverability, stability, and control. Whether you're a wheelchair user yourself, a caregiver, or simply curious about wheelchair design, understanding casters helps you appreciate the engineering that makes modern wheelchairs safe and functional.

When selecting or maintaining a wheelchair, don't overlook the casters. The right caster type, size, and material can significantly impact comfort, safety, and ease of use. And if casters become worn or damaged, replacing them promptly ensures the wheelchair continues to perform as designed.

For elderly wheelchair users in particular, well-maintained casters are crucial for safety. Smooth-rolling, properly functioning casters reduce the risk of sudden stops or jarring movements that could cause falls or injuries.
